Place of Origin : Beijing, China
Brand Name : SNR
Model Number : SNR-QL2
Certification : CE
Packaging Details : Plywood case
Supply Ability : 50 Set/Sets per Month
Price : Netogitable
MOQ : 1set
Payment Terms : T/T
Delivery Time : 10-15 work days
Name : CNC plasma cutting kit
Cutting range : 1300*2500mm,1500*3000mm ,Can be customized
Control system : F2100B 7.0 inch Shanghai Fangling
Torch height control : F1621 auto THC for plasma
Lifter & torch quantity : One lifter(support plasma&flame)
Drive motor : stepper motor
Software : FastCAM standard
Guide rail : round rail
cutting speed : 0-6000mm/min
plasma cutting speed : 2-25mm, depends on plasma source

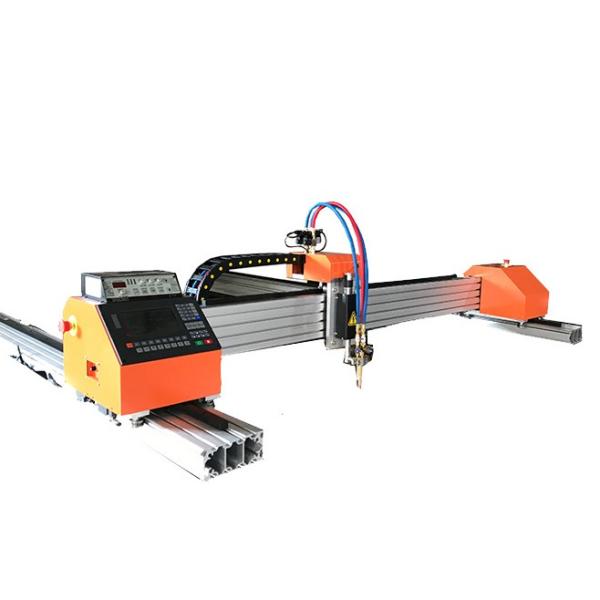

portable gantry type CNC Plasma Cutting Machine Gantry Cnc plasma Kit for metal
1. portable gantry cnc plasma cutting machine is used for cutting metal sheet, such as mild steel, stainless steel, aluminum, etc.
2. with step motor and driver, doube side drive
3. using Shanghai Fangling F2100B CNC plasma controller, and F1621 auto torch height control (THC) for plasma.
4. adopts linear rail for gantry beam(X axis), with higher precision.
5. work well with all kinds of plasma source, China brand HUAYUAN or MISNCO, or American brand.
| Model | SNR-QL2 aluminum CNC plasma profile cutting machine |
| Cutting range | 1300*2500mm,1500*3000mm |
| Control system | 7.0 inch F2100B |
| Torch height control | Shanghai Fangling F1621 auto THC for plasma |
| Lifter & torch quantity | One lifter,can be both with plasma torch and flame torch |
| Drive motor | Stepper motor & driver |
| Rail for beam | linear rail |
| Software | FastCAM standard |
| Cutting mode | Plasma+Flame |


Beijing Seigniory NC Equipment Co.,Ltd is a professional manuafacturer and exporter of CNC cutting machine. we have been in this CNC filed for more than 14 years. Our main products includes portable CNC,gantry CNC, CNC plasma table for metal sheet and steel pipes.
Since the estabilsh of our company, we have been sticking to the path of specialization and had many engineering technology staff members.
Our machines are widely used in automotive manufacturing, shipbuilding, fan manufacturing,mining equipment, steel processing, advertising cutting, enginerring machiney, agricultural machinery and other machinery manufacturing industry.
So far we have exported to many countries like Russia, France, UK, Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia, India and so on.







Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14 years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i should choose?
A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!

|   |
